KG316T-II AC Timer/DC Timer 220V/12V Digital Programmable Electronic Timer Switch Digital Timer Electric Fence

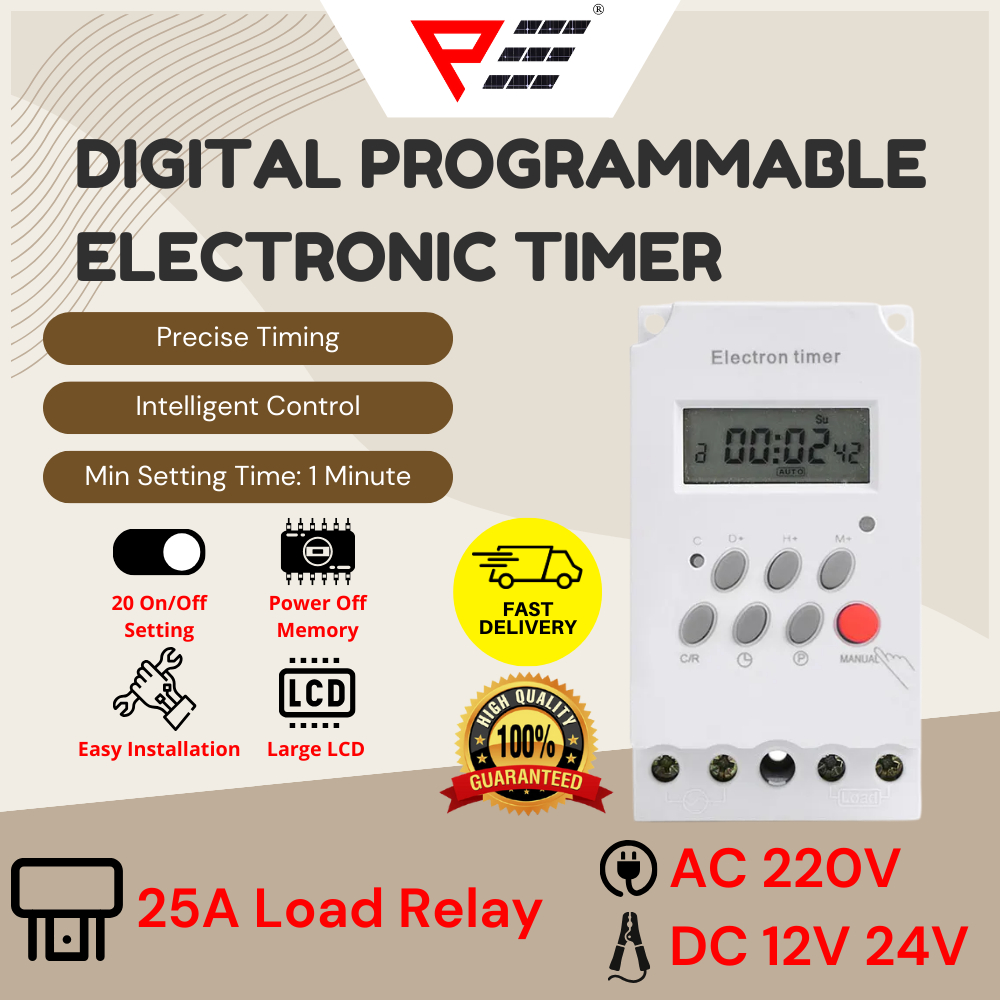

Digital Programmable Time Switch KG316T-II

Digital Programmable Time Switch KG316T-II widely used in the production equipment, street lamp, light box, meon light, ware house ventilation, agricultral cultivation, automatic preheating, radio and television, etc., is the ideal control products.

Basic Features:

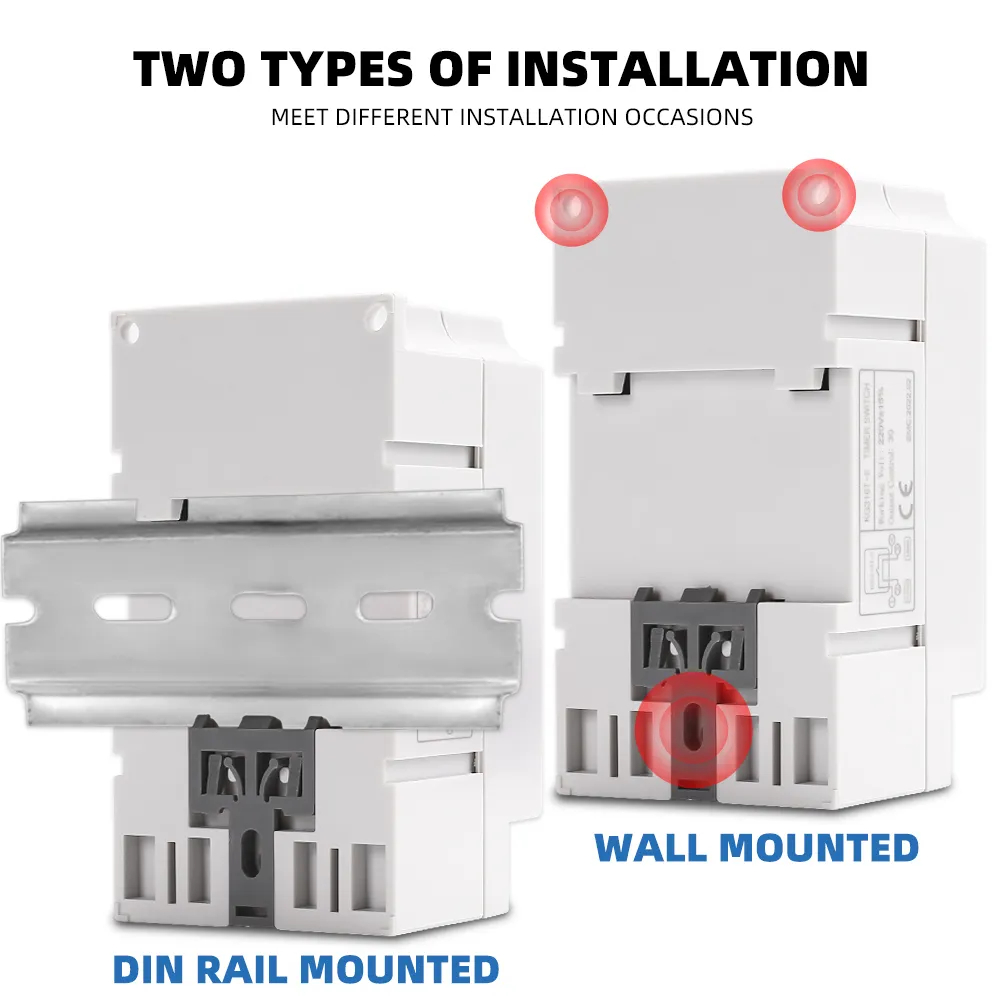

Panel mounted Advanced pre-setting one week before
Digital electronic timer switch with daily & weekly programs
Repeat programs with 16 on/off setting and manual override
Lithium battery power reserve when electric supply cut off

Technical Data:
Standard working power supply: AC 220V/50HZ, DC 12V, DC 24V
Consumption Power: Timer Range: 1 mins – 168 hours
Regular Timer: 20 Times ON/OFF(day/weeks)
Time error: <1S/day (25℃)

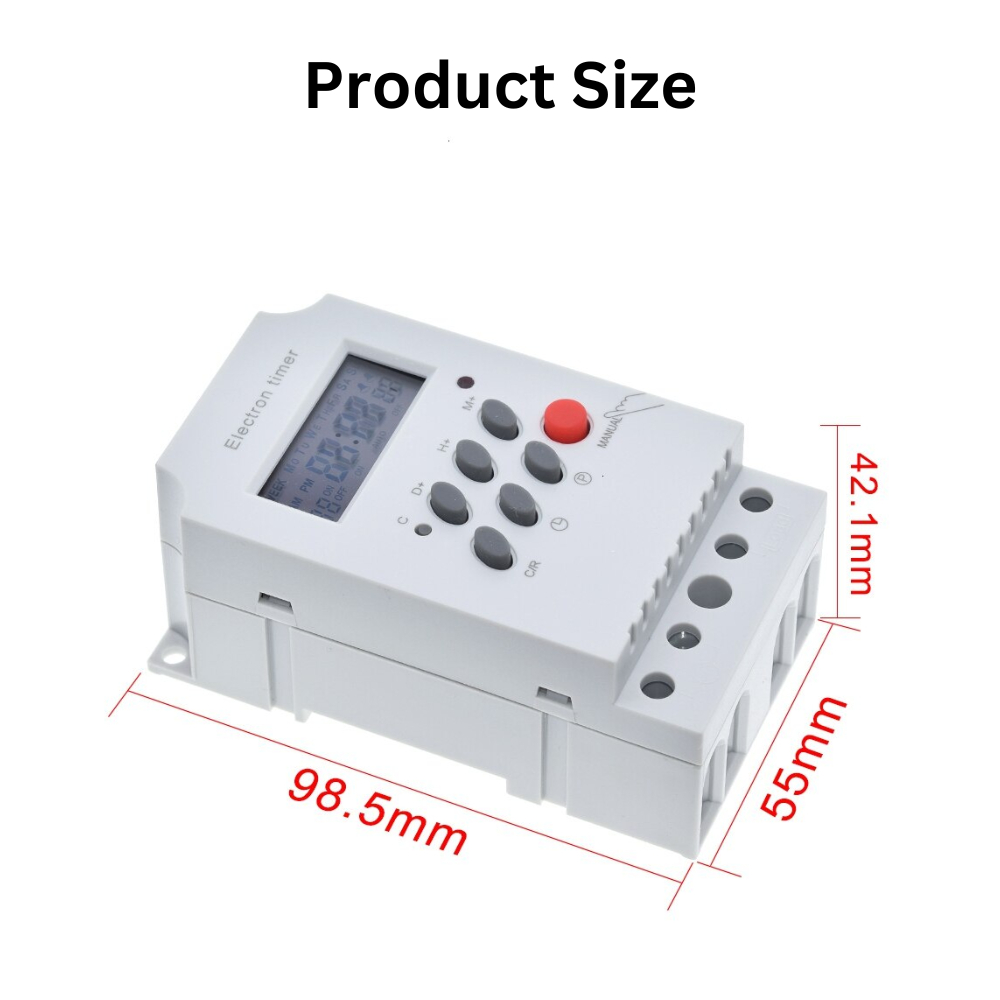

Dimension: 995642mm
Weight: 130g
Have Hibernation feature
Battery life: 5 years(Lithium battery)
Note: Charge 8 Hour Before Use

PRODUCT NAME: KG3022D MICROCOMPUTER RINGING CONTROLLER (Bell Timer)

Number of Rings: 28 Time/ Day
Ring Duration: 0-59 Seconds
OPERATING VOLTAGE: AC220V 50HZ
SIZE:1207550MM
WORKING TEMPERATURE:-10 -55°C
OWN POWER CONSUMPTION:LESS THAN 1W
APPLICABLE ENVIRONMENT: TEMPERATURE-25 -60°C, HUMIDITY <95%RH
Note: Charge 8 Hour Before Use
