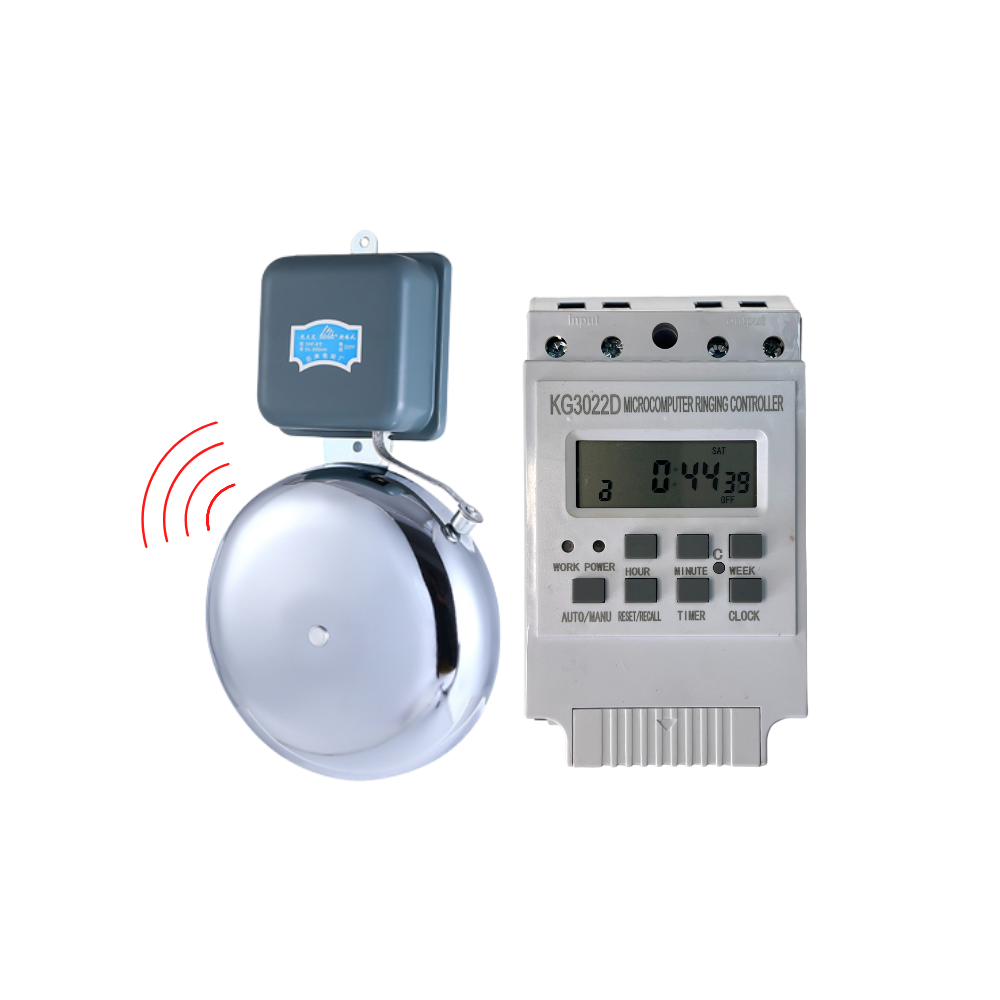

8-Inch Electric Bell + KG3022D Timer Set

A scheduled alert set combining an 8-inch stainless-steel non-sparking electric bell with a KG3022D programmable timer. The timer supports up to 28 scheduled events and ring durations from 1 to 59 seconds. One timer can control multiple compatible bells when the timer contacts, switching device, circuit protection, cable and total connected load are correctly rated. Specifications - Bell: 8-inch stainless steel, AC 220 V - Bell switch capacity: 10 A resistive load - Bell stated coverage: 800–1,000 m² - Timer: KG3022D, AC 220 V, 50 Hz ±10% - Timer capacity: up to 28 events - Timer duration: 1–59 seconds Installation and use - Install each bell securely where the sound can be heard clearly. - Install the timer in a dry, protected position and connect it between the AC supply and bell circuit. - For multiple bells, use correctly rated switching, circuit protection and cable for the total connected load. - Program the weekday, time and ring duration, then select AUTO mode. - Mains wiring and multi-bell load calculations must be completed by a qualified electrician.
