Electronic Music Bell + KG3022D Timer Set

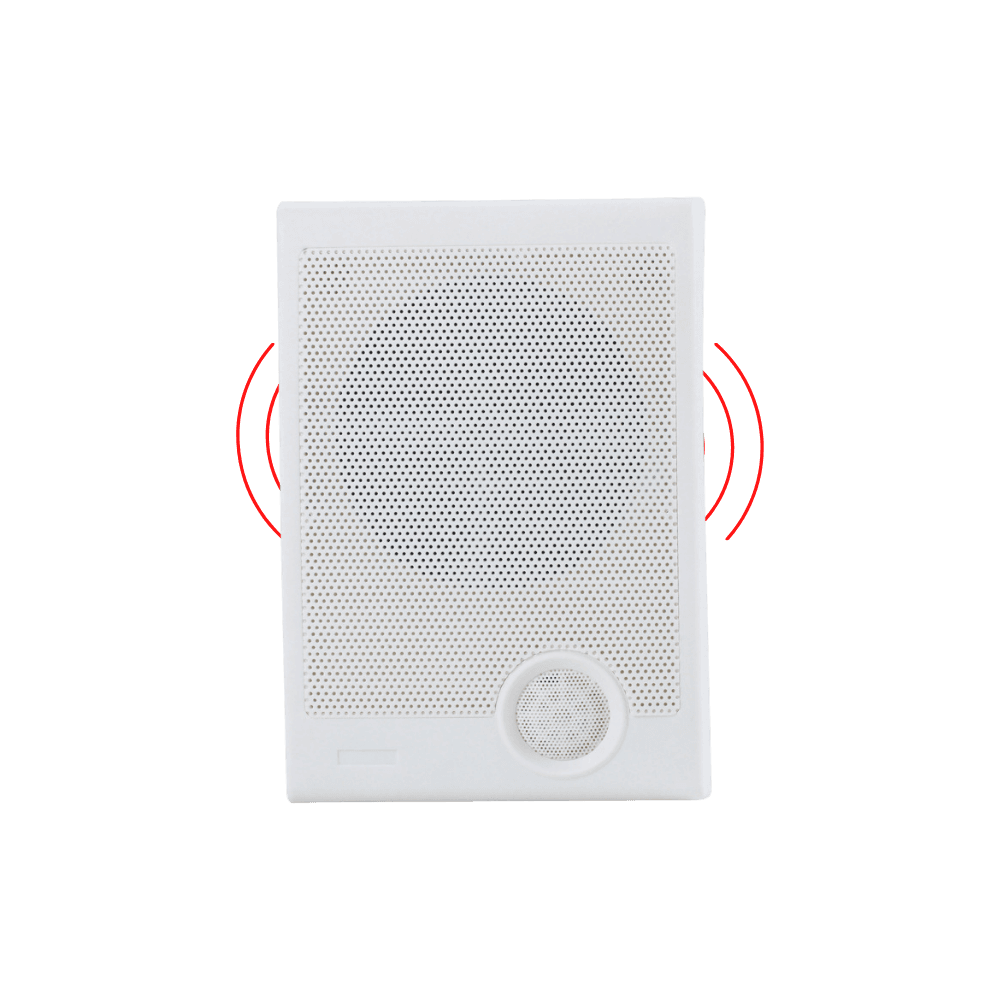

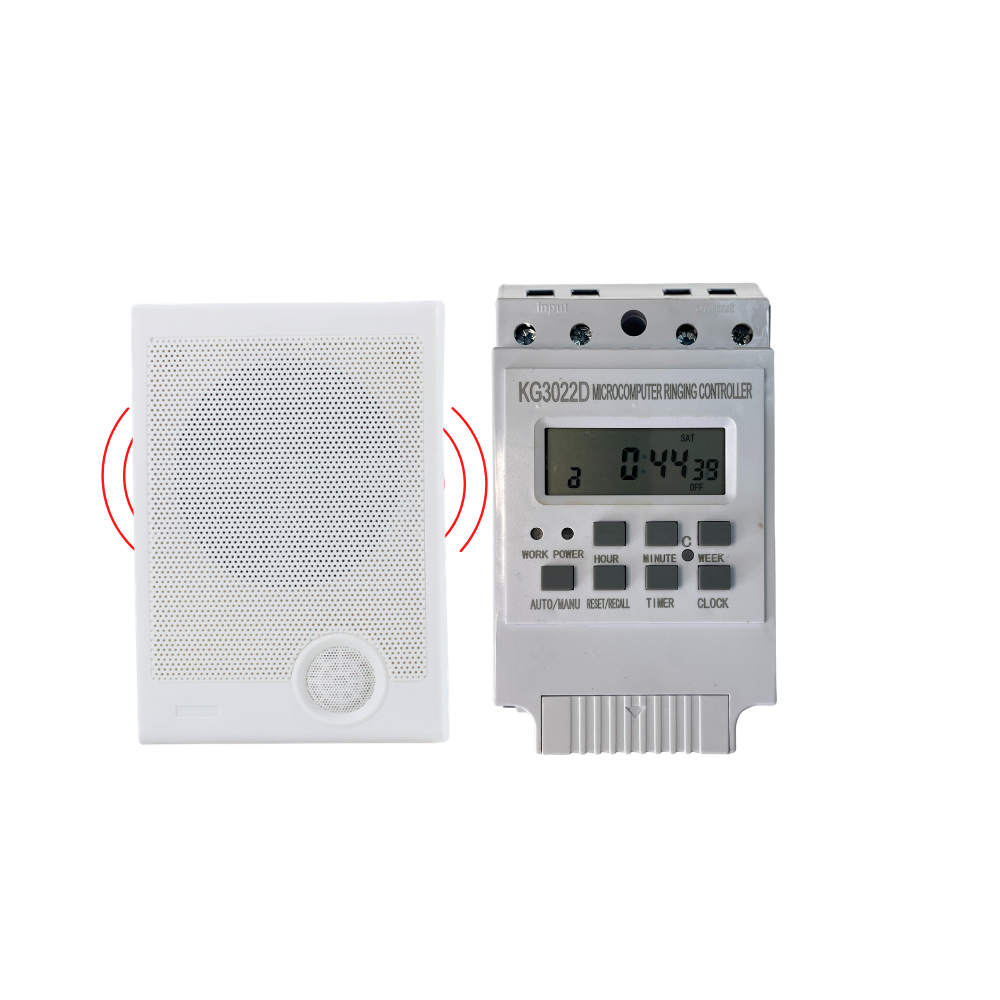

A scheduled alert set combining an AC 220 V electronic music bell with 25 built-in melodies and a KG3022D programmable timer. The timer supports up to 28 scheduled events and ring durations from 1 to 59 seconds. One timer can control multiple compatible bells when the timer contacts, switching device, circuit protection, cable and total connected load are correctly rated. Specifications - Music bell: AC 220 V, 25 built-in melodies - Volume: adjustable 0–100 dB - Stated coverage: approximately 300 m² - Timer: KG3022D, AC 220 V, 50 Hz ±10% - Timer capacity: up to 28 events - Timer duration: 1–59 seconds Installation and use - Install the bell securely where the sound can be heard clearly. - Connect the timer between the AC supply and bell circuit. - For multiple bells, use correctly rated switching, circuit protection and cable for the total connected load. - Select a melody, adjust volume, program the schedule and select AUTO mode. - Mains wiring and multi-bell load calculations must be completed by a qualified electrician.
